结构和技术特点
l 非自吸立式多级离心泵,与标准电机连接,泵座上有同轴进出口。
l 泵头盖等所有与介质接触的部件均为不锈钢制造,MVI为不锈
钢304,MVN为不锈钢316。
l 泵配用DIN24960标准免维护机械密封。
l 提供DIN法兰、PJE接口和椭圆法兰等多种连接方式。
适用范围
l 供水与增压
l 工业水循环
l 工业洗涤和各种冲洗
l 超过滤、反渗透及蒸馏系统
l 锅炉给水和冷凝水系统
l 冷却、加热和空调系统
l 消防和喷淋系统
l 灌溉与农业
运行条件
l 输送液体:不含有固体颗粒或纤维的清洁液体
l 液体温度:-15℃~+120℃(定制可达更高温度)
l 环境温度:最高40℃
l 样本参数仅限海拔最高1000m

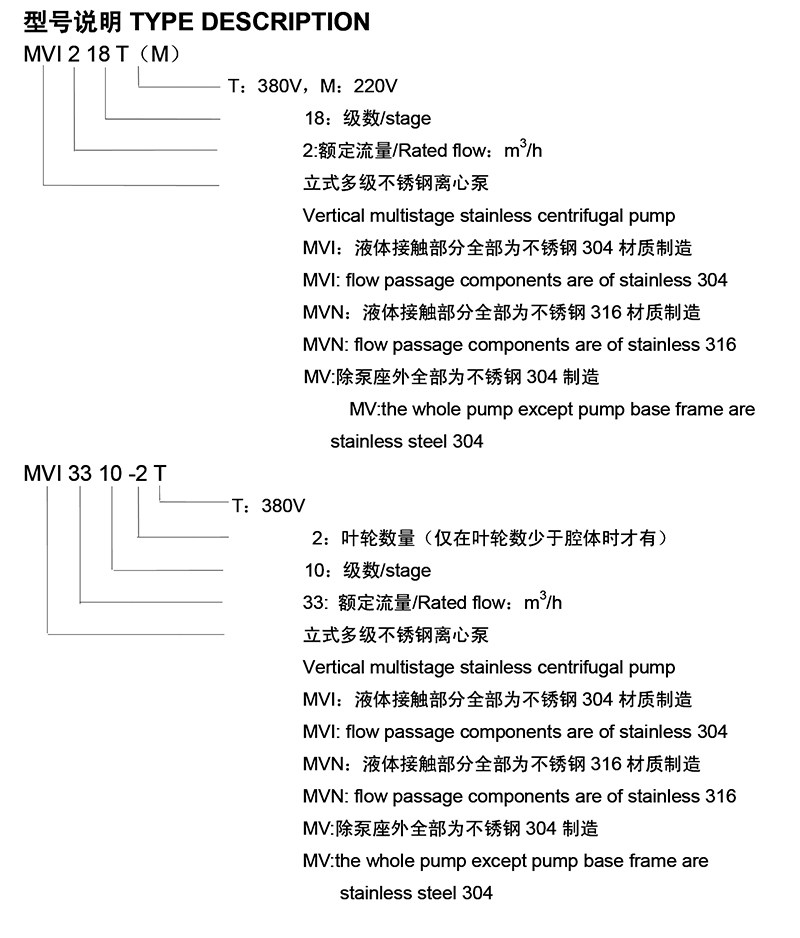

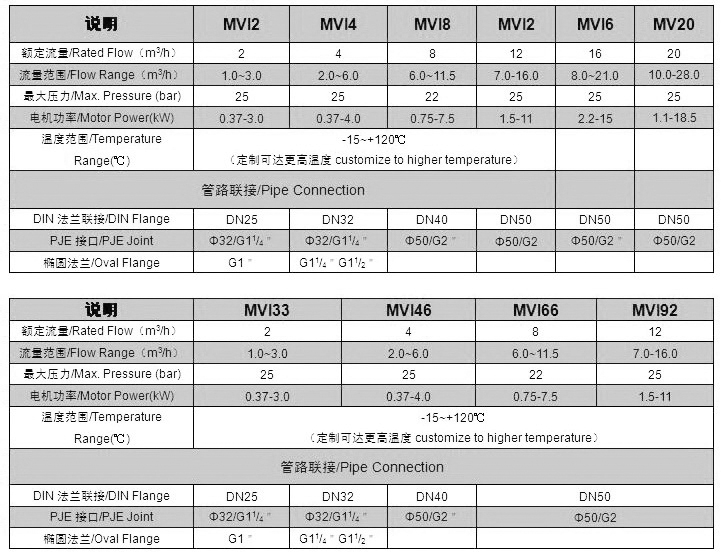

产品范围
*更大规格参见MV33,42,66,90系列,流量可达120 m3/h,扬程可达330m
电机ELECTRIC MOTOR
l 全封闭风冷型,2极标准电机安装Full-enclosed air-blast two-pole standard motor
l 从5.5Kw起:(B5) From5.5Kw:(B5)
l F级绝缘Insulation class: F
l IP54、IP55防护等级Protection class: IP54, IP55
l 50Hz标准电压:3x220/346V 3×200-220/346V-380V 3×380/415V 1×220-230/240V/1×110/220V
l 电机起/停次数 :4Kw(含)以下,30次/小时其他,20次/小时
l 按要求可提供防爆和其他特殊电机We can provide explosion-proof and other motor upon requirement.

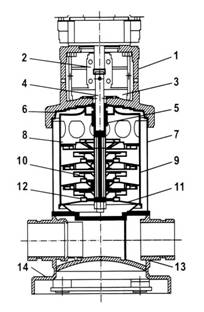

剖面图(Structure Drawing)
材料(Material)
,
序号 |
说明 NAME |
材料MATERIAL |
AISI/ASTM |
1 |
泵头pump head |
铸铁cast iron |
ASTM25B |
2 |
联轴器couping |
钢/铸铁copper/cast iron |
|
3 |
保护 Protective shield |
不锈钢 stainless steel |
AISI304 |
4 |
轴shaft |
不锈钢 stainless steel |
AISI304 |
5 |
机械密封mechanical seal |
BUBE BUBV AUUE AUAE |
|
6 |
泵头盖 casing cover |
不锈钢 stainless steel |
AISI304 |
外圆筒 outside cylinder |
不锈钢 stainless steel |
AISI304 |
|
7 |
拉杆螺栓 screw |
不锈钢 stainless steel |
AISI304 |
8 |
出口腔体 outlet cavity |
不锈钢 stainless steel |
AISI304 |
9 |
中间腔体 middle cavity |
不锈钢 stainless steel |
AISI304 |
10 |
叶轮 impeller |
不锈钢 stainless steel |
AISI304 |
11 |
进口腔体 inlet cavity |
不锈钢 stainless steel |
AISI304 |
12 |
颈环neck ring |
Acoflon215 |
|
13 |
泵座base frame |
不锈钢 stainless steel |
AISI304 |
14 |
底板backplane |
钢/铸铁copper/cast iron |
|
注 |
泵中橡胶件rubber parts |
EPDM或FPM EPDM OR FPM |
|
不锈钢316 根据要求stainless 316 upon requirement |
